Balance Stage Recovery Nozzle

The balance stage recovery nozzle is a specialized fuel dispensing nozzle that creates a vapor-tight connection with the vehicle’s loading port.  The spout goes in the port and then is surrounded by an airtight connector.

Airtight connections when dispensing fuel or on-loading fuel.  An airtight seal is an important component of mandatory vapor recovery systems.  The airtight connection starts at the nozzle at the fuel depot or gas station.

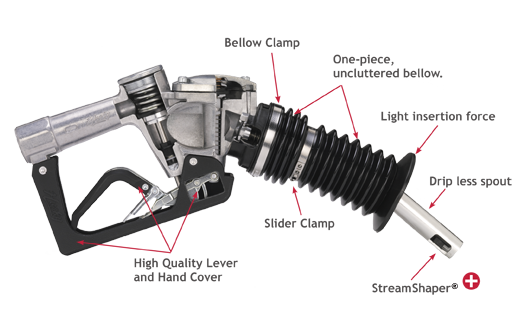

The Balance Stage Recovery Nozzle is an accordion-like device that enables an airtight connection between the distribution nozzle and the fuel port of a tank that is being loaded.  It is sleeve-like and made from a flexible rubber that covers the port to create the air-tight seal. This is an important component of vapor recovery systems to prevent the emission of fuel vapors into the atmosphere.

Vapor recovery systems reduce the amount of fuel lost to evaporation.  The whole fuel delivery process creates many occasions where evaporating fuel needs to be recovered before it enters the atmosphere.  The fuel bellows are an important component of a vapor recovery system due to the air-tight connection it creates at the point of delivery.

There are recovery nozzles for every type of dispensing stage in the fuel delivery industry.  Oil Depots and refineries need a recovery nozzle to encompass large fuel hoses that clamp onto large ports on delivery vehicles.  Keeping as much of airtight seal as possible is paramount for the VRS (Vapor Recovery System) to function at an optimal level.

The environmental and fiscal concerns about product loss due to evaporation are very real.  It is estimated that 147 million gallons of gasoline are lost each year due to evaporation.  Source: EPA

Balance Stage Recovery Nozzles are an important component of a Vapor Recovery System.

That being said it is vitally important that the components of a fueling operation be looked at frequently.  Most fuel depot nozzles are made from nitrile rubber that is sturdy and resistant to corrosion but they should be checked frequently for tears and areas where a seal around a fuel loading port may be compromised.  Set up an inspection schedule to monitor accordingly.
